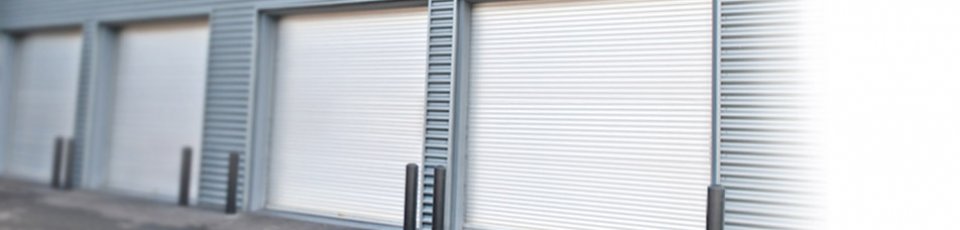

Rolling shutters

Rolling shutters armour reinforced

• roll-formed with lateral end pieces
• end rail with ground/floor seal

Guide rails

• galvanised steel, aluminium or stainless steel
• with or without piping for wind hooks and storm rolls
• powder-coated or anodised
• special customised design on request

Bearings

• on lateral consoles
• standard version
• special constructions

Additional equipment

• Contact rail
• Underground garage controls
• Remote control
• Safety device according to EN 13241
• Switches, keys, CEE plug ...
• Diagonal end rails
• Lockable ground/floor profiles
• Side part with fixed wicket door and swivel-capable
• Special customised designs on customer request

Control

• Deadman (continuous pressing)
• Impulse (self-locking)
• Automatic (timed)

Shaft

• Steel corresponding to the allowable deflection according to width and weight
• Galvanised 8-edged shafts
• Primed round shafts
• Galvanised round tubes (on request)

Drive

• Manually operated
• with OCO spring housings for easy rolling shutters under 100 kg
• with two-bit lock at hand height or
• with profile cylinder lock in/on the end rail
• Tubular motor - 230 volt with emergency hand crank (if necessary)
• Direct mount drive and sprocket chain drive - 400 volt with reversing contactors and emergency hand crank
• Direct mount drive with frequency converters for high-speed shutters
